Automated device and retrieval systems / High-bay warehouse

Industry-specific solutions for high-bay warehouses & distribution centres

Our broad product range of storage and stacker cranes allows industry-specific overall solutions for automated warehouses and distribution centres. These standardised storage and stacker cranes, connected with an automated picking zone, are functional and economically efficient.

Whether single- or double-masted, aisle-bound or aisle switchable version; the ideal stacker crane is available for any application. Special designs for large weights and loads can be realised for all series.

We offer one-stop overall material flow solutions adapted to your processes, from the idea to a realised turnkey logistics system.

Media Center / Downloads

Advantages of the system

  • Mobility, functionality and economic efficiency for pallet transport and storage
  • Storage and retrieval stacker crane in the versions: - aisle-bound / - aisle switchable
  • Single- and double-masted stacker crane, depending on the application needs
  • Single- , double- or multiple-deep storage for increasing picking and inventory turnover performance
  • Speed when travelling: up to 3 m/s, and when lifting 1-2 m/s acceleration / deceleration to 1 m/s2
  • Short approach dimensions
  • Newest energy and security concept after EN ISO13849-1
  • Sturdy construction, no subsequent swaying, durable

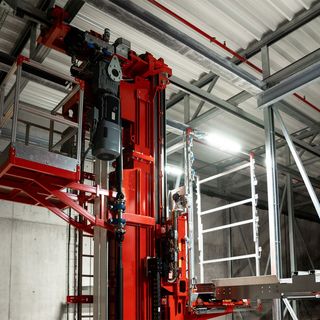

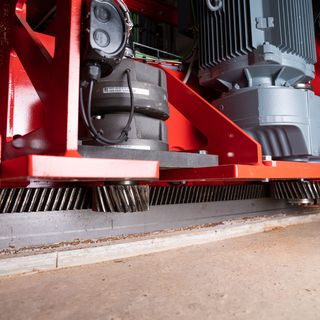

  • All elements to be serviced are at the bottom of the device
Palettenfördersysteme und Lagerung
Palettenfördersysteme und Lagerung
Palettenlager vollautomatisch
Palettenlager vollautomatisch
Logistik Lager
Logistik Lager
Automatisierung Lager Paletten
Automatisierung Lager Paletten
Materialfluss Logistik Paletten
Materialfluss Logistik Paletten

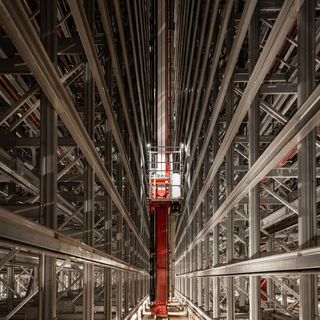

Hochregallager automatisch Paletten
Hochregallager automatisch Paletten

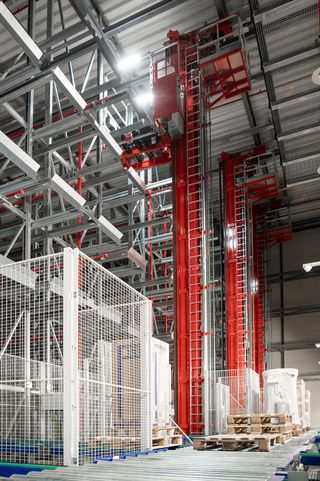

The ideal stacker crane is available for any application:

Stacker crane
RBG 0120 k+w

The RBG 0120 k+w is a fully automatic, aisle switchable side-mast stacker crane with a max. installation height of 20 m.

Designed for EURO pallets and a maximum weight of 1,000 kg.

Stacker crane
RBG 0122

The RBG 0122 is a fully automatic, aisle-bound side-mast stacker crane with a max. installation height of 22 m.

Designed for EURO pallets and a maximum weight of 1,000 kg.

Stacker crane
RBG 0130

The RBG 0130 is a fully automatic, aisle-bound side-mast stacker crane with a max. installation height of 30 m.

Designed for EURO pallets and a maximum weight of 1,000 kg.

Single-deep or double-deep storage is possible.

Stacker crane
RBG 0420 - Shuttle vehicle

The RBG 0420 is a fully automatic, aisle-bound double-masted stacker crane with side-mast arrangement. The max. installation height is 20 m with a max. payload of 1,000 kg.

The stacker cranes are equipped with a wireless shuttle vehicle. This allows a rapid multi-deep storage (available in version longitudinal or transverse direction).

Stacker crane
RBG 0430

The RBG 0430 is a fully automatic, aisle-bound double-masted stacker crane with side-mast arrangement. The max. installation height is 30 m with a max. payload of 2x1,500 kg.

Stacker crane
RBG 0435

The RBG 0430 is a fully automatic, aisle-bound double-masted stacker crane with side-mast arrangement. The max. installation height is 35 m with a max. payload of 2x1'000 kg.

Stacker crane
RBG 0440 - Shuttle vehicle

The RBG 0440 is a fully automatic, aisle-bound double-masted stacker crane with side-mast arrangement. The max. installation height is 40 m with a max. payload of 1,300 kg.

The stacker cranes are equipped with a wireless shuttle vehicle. This allows a rapid multi-deep storage (available in version longitudinal or transverse direction).
