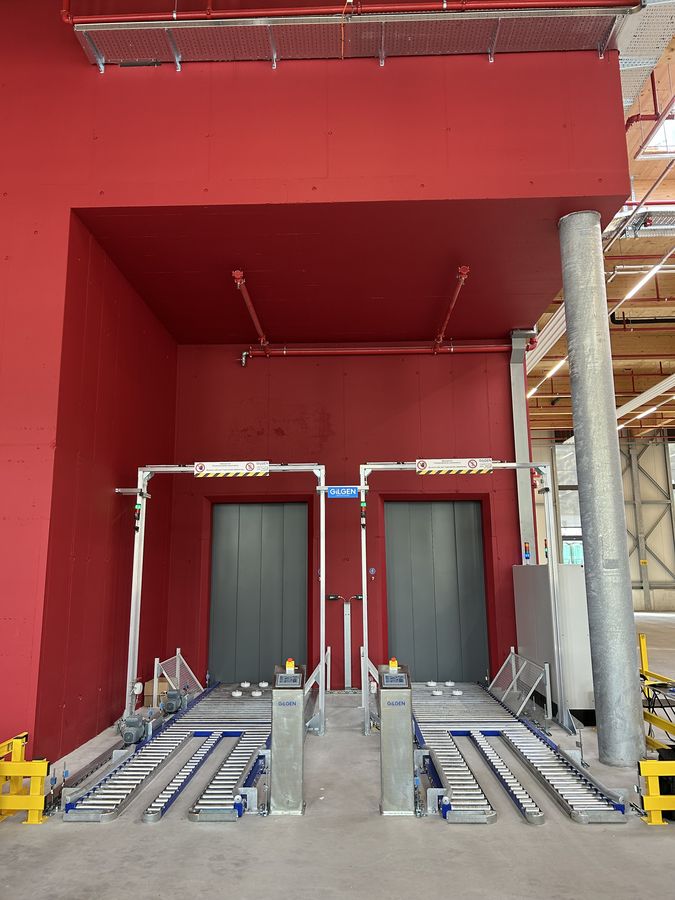

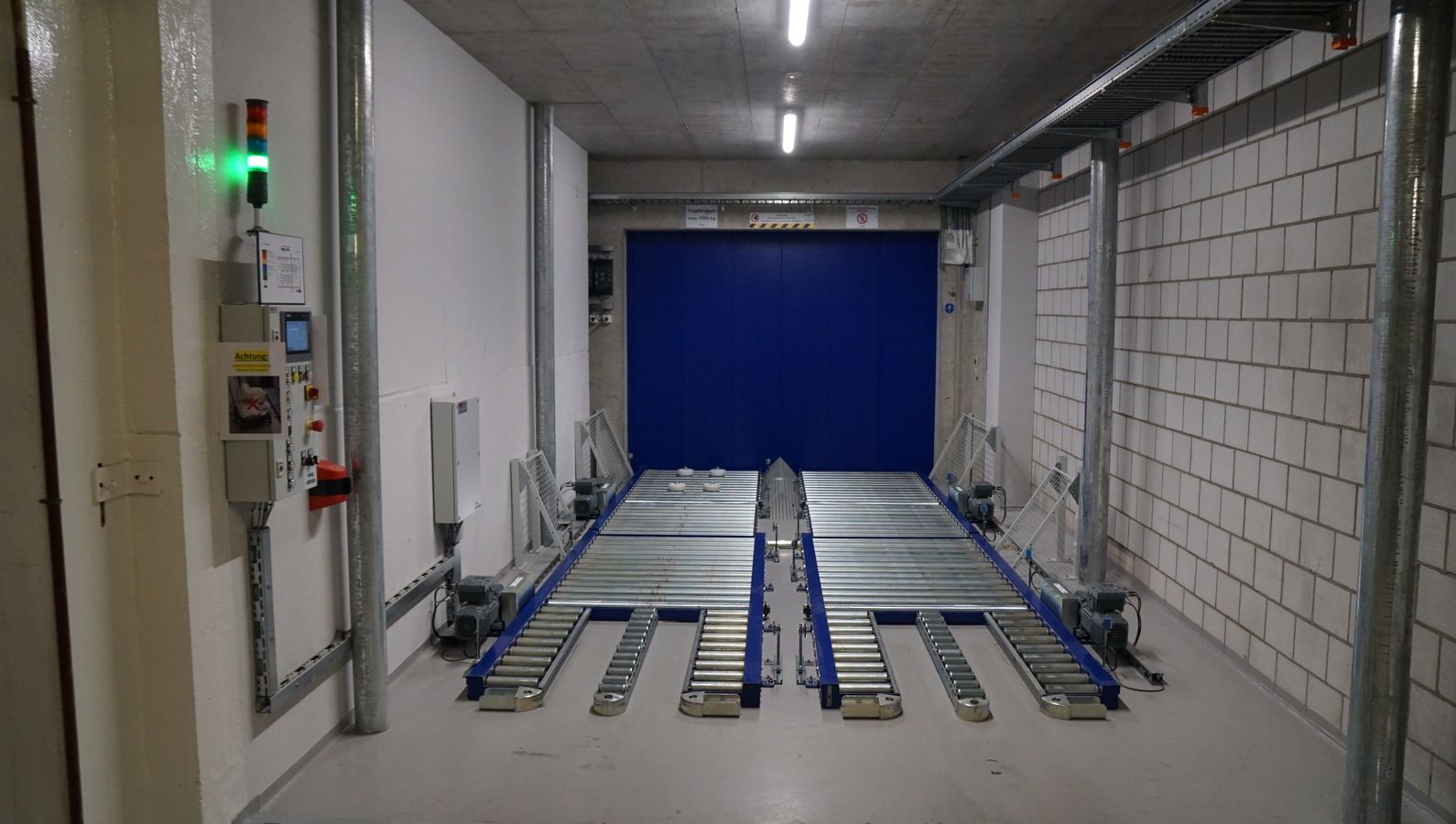

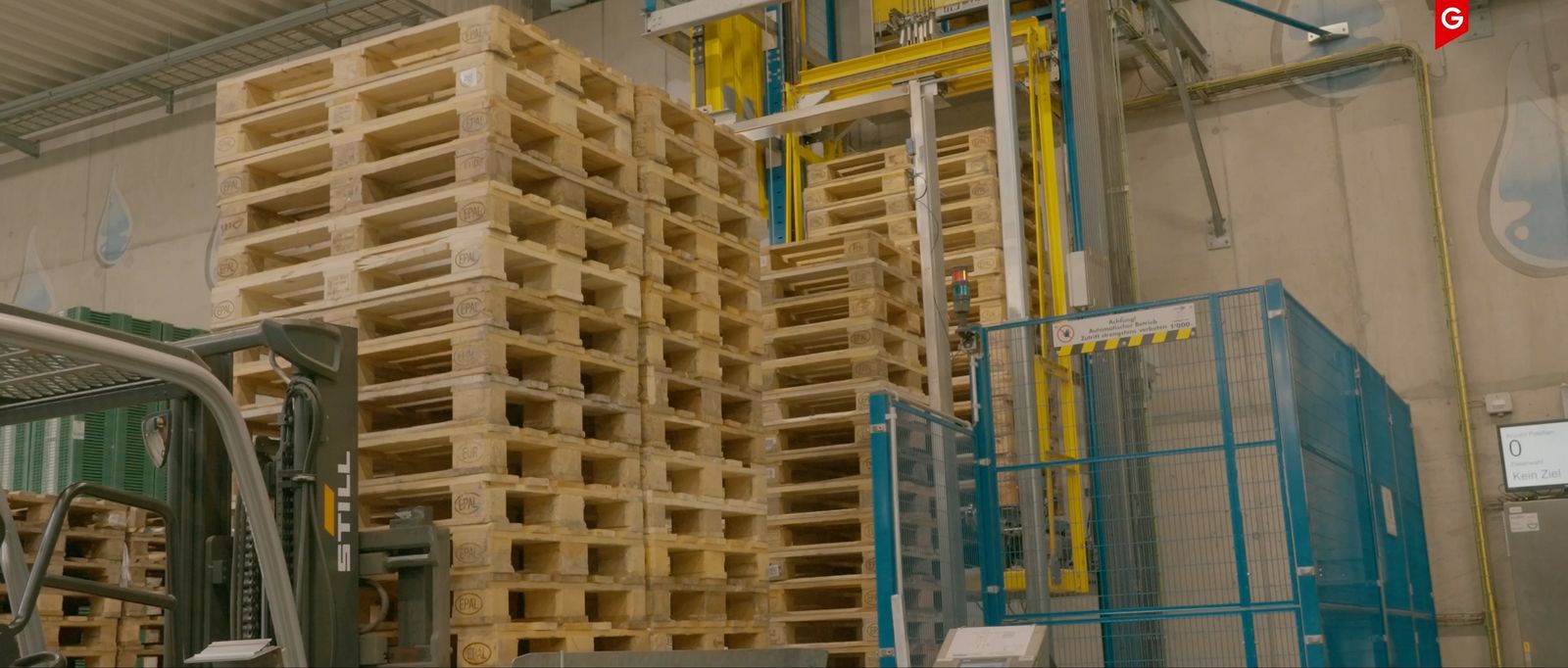

Pallet lift
Counterweight, safety brake, modular
With the right conveyor on the load handling attachment, not only pallets but also roll containers and packs can be transported. The pallet lift can be used to negotiate several floors.
Safety brakes fitted as standard ensure the safe transport of goods. It can therefore be used over individual floors without the need for a raised floor.
The rope lift design guarantees very smooth running. Different drive designs allow the lift to be optimally adapted to the customer's requirements
The different types of conveyors that can be placed on the lift enable the transport of a wide variety of goods. The traction lift can be designed in a mast version (lifting height up to 15 metres) and in a shaft version (lifting height up to 40 metres).
|
|
|
|---|
|
Lifting speed:
|
0.6 m/s to max. 2 m/s
|
|
Acceleration:
|
0.4 m/s² (max. 1,5 m/s²)
|
|
Loading and unloading speed:
|
0,3 m/s (automatic)
|
|
Motor power:
|
11.0 to 37 kW
|
|
Lifting height:
|
Mast version Lifting height up to 15m
|
|
|
Shaft version Lifting height up to 40m
|
|
Load weight:
|
single LAM 1500 kg / double LAM 3000kg
|
